Zen 2

Zen 2 is a computer processor microarchitecture by AMD. It is the successor of AMD's Zen and Zen+ microarchitectures, and is fabricated on the 7 nm MOSFET node from TSMC. The microarchitecture powers the third generation of Ryzen processors, known as Ryzen 3000 for the mainstream desktop chips (codename "Matisse"), Ryzen 4000U/H (codename "Renoir") and Ryzen 5000U (codename "Lucienne") for mobile applications, as Threadripper 3000 for high-end desktop systems,[5][6] and as Ryzen 4000G for accelerated processing units (APUs). The Ryzen 3000 series CPUs were released on 7 July 2019,[7][8] while the Zen 2-based Epyc server CPUs (codename "Rome") were released on 7 August 2019.[9] An additional chip, the Ryzen 9 3950X, was released in November 2019.[7]

AMD Zen 2
General information
Launched7 July 2019 (7 July 2019)[1]
Designed byAMD
Common manufacturer(s)
Cache
L1 cache64 KB (per core)
L2 cache512 KB (per core)
Architecture and classification
Technology nodeTSMC N7[2][3]
TSMC N6[4]
Instruction setAMD64 (x86_64)
Physical specifications
Cores
  • Up to 64
Socket(s)
Products, models, variants
Product code name(s)
  • Matisse (desktop)
  • Rome (server)[3]
  • Castle Peak (HEDT)
  • Renoir (Desktop APU, mobile and embedded)
  • Mendocino (mobile and embedded refresh)
History
Predecessor(s)Zen+
Successor(s)Zen 3
Support status
Supported

At CES 2019, AMD showed a Ryzen third-generation engineering sample that contained one chiplet with eight cores and 16 threads.[5] AMD CEO Lisa Su also said to expect more than eight cores in the final lineup.[10] At Computex 2019, AMD revealed that the Zen 2 "Matisse" processors would feature up to 12 cores, and a few weeks later a 16 core processor was also revealed at E3 2019, being the aforementioned Ryzen 9 3950X.[11][12]

Zen 2 includes hardware mitigations to the Spectre security vulnerability.[13] Zen 2-based EPYC server CPUs use a design in which multiple CPU dies (up to eight in total) manufactured on a 7 nm process ("chiplets") are combined with a 14 nm I/O die on each multi-chip module (MCM) package. Using this, up to 64 physical cores and 128 total compute threads (with simultaneous multithreading) are supported per socket. This architecture is nearly identical to the layout of the "pro-consumer" flagship processor Threadripper 3990X.[14] Zen 2 delivers about 15% more instructions per clock than Zen and Zen+,[15][16] the 14- and 12-nm microarchitectures utilized on first and second generation Ryzen, respectively.

The Steam Deck,[17][18] PlayStation 5, Xbox Series X and Series S all use chips based on the Zen 2 microarchitecture, with proprietary tweaks and different configurations in each system's implementation than AMD sells in its own commercially available APUs.[19][20]

Design
Two delidded Zen 2 processors designed with the multi-chip module approach. The CPU on the left/top (used for mainstream Ryzen CPUs) uses a smaller, less capable I/O die and up to two CCDs (only one is used on this particular example), while the one on the right/bottom (used for high-end desktop, HEDT, Ryzen Threadripper and server Epyc CPUs) uses a larger, more capable I/O die and up to eight CCDs.

Zen 2 is a significant departure from the physical design paradigm of AMD's previous Zen architectures, Zen and Zen+. Zen 2 moves to a multi-chip module design where the I/O components of the CPU are laid out on its own, separate die, which is also called a chiplet in this context. This separation has benefits in scalability and manufacturability. As physical interfaces don't scale very well with shrinks in process technology, their separation into a different die allows these components to be manufactured using a larger, more mature process node than the CPU dies. The CPU dies (referred to by AMD as core complex dies or CCDs), now more compact due to the move of I/O components onto another die, can be manufactured using a smaller process with fewer manufacturing defects than a larger die would exhibit (since the chances of a die having a defect increases with device (die) size) while also allowing for more dies per wafer. In addition, the central I/O die can service multiple chiplets, making it easier to construct processors with a large number of cores.[14][21][22]

Simplified illustration of the Zen 2 microarchitecture

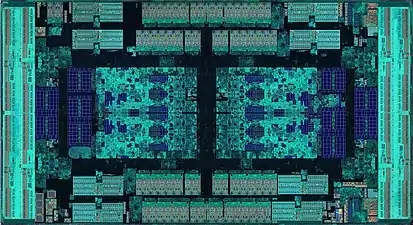

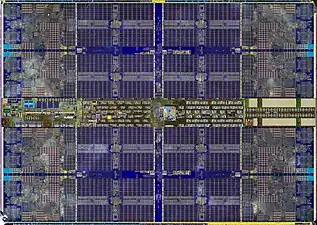

On the left (top on mobile): Die shot of a Zen 2 Core Complex Die. On the middle: Die shot of a Zen 2 EPYC/Threadripper I/O die, On the right (bottom): I/O die of a Zen 2 mainstream Ryzen I/O die.

With Zen 2, each CPU chiplet houses 8 CPU cores, arranged in 2 core complexes (CCXs), each of 4 CPU cores. These chiplets are manufactured using TSMC's 7 nanometer MOSFET node and are about 74 to 80 mm2 in size.[21] The chiplet has about 3.8 billion transistors, while the 12 nm I/O die (IOD) is ~125 mm2 and has 2.09 billion transistors.[23] The amount of L3 cache has been doubled to 32 MB, with each CCX in the chiplet now having access to 16 MB of L3 compared to the 8 MB of Zen and Zen+.[24] AVX2 performance is greatly improved by an increase in execution unit width from 128-bit to 256-bit.[25] There are multiple variants of the I/O die: one manufactured on GlobalFoundries 14 nanometer process, and another manufactured using the same company's 12 nanometer process. The 14 nanometer dies have more features and are used for the EPYC Rome processors, whereas the 12 nm versions are used for consumer processors.[21] Both processes have similar feature sizes, so their transistor density is also similar.[26]

AMD's Zen 2 architecture can deliver higher performance at a lower power consumption than Intel's Cascade Lake architecture, with an example being the AMD Ryzen Threadripper 3970X running with a TDP of 140 W in ECO mode delivering higher performance than the Intel Core i9-10980XE running with a TDP of 165 W.[27]

New features
  • Some new instruction set extensions: WBNOINVD, CLWB, RDPID, RDPRU, MCOMMIT. Each instruction uses its own CPUID bit.[28][29]
  • Hardware mitigations against the Spectre V4 speculative store bypass vulnerability.[30]
  • Zero-latency memory mirroring optimization (undocumented).[31]
  • Doubled width of the execution units and load store units (from 128-bit to 256-bit) in the floating point coprocessor and significant further throughput enhancements in the multiplication execution unit. This allows the FPU to perform single-cycle AVX2 calculations.[32]

Feature tables

CPUs

APUs

APU features table

Products

On 26 May 2019, AMD announced six Zen 2-based desktop Ryzen processors (codenamed "Matisse"). These included 6-core and 8-core variants in the Ryzen 5 and Ryzen 7 product lines, as well as a new Ryzen 9 line that includes the company's first 12-core and 16-core mainstream desktop processors. [33]

The Matisse I/O die is also used as the X570 chipset.

AMD's second generation of Epyc processors, codenamed "Rome", feature up to 64 cores, and were launched on 7 August 2019.[9]

3000 series (Matisse)

Common features of Ryzen 3000 desktop CPUs:

  • Socket: AM4.
  • All the CPUs support DDR4-3200 in dual-channel mode.
  • L1 cache: 64 KB (32 KB data + 32 KB instruction) per core.
  • L2 cache: 512 KB per core.
  • All the CPUs support 24 PCIe 4.0 lanes. 4 of the lanes are reserved as link to the chipset.
  • No integrated graphics.
  • Fabrication process: TSMC 7FF.
Branding and Model Cores
(threads)		 Thermal Solution Clock rate (GHz) L3 cache
(total)		 TDP Chiplets Core
config[lower-roman 1]		 Release
date		 MSRP
Base Boost
Ryzen 9 3950X 16 (32) N/A 3.5 4.7 64 MB 105 W[lower-roman 2] 2 × CCD
1 × I/OD		 4 × 4 Nov 25, 2019 US $749
3900XT 12 (24) 3.8 4 × 3 Jul 7, 2020 US $499
3900X Wraith Prism 4.6 Jul 7, 2019
3900[lower-alpha 1] OEM 3.1 4.3 65 W Oct 8, 2019 OEM
Ryzen 7 3800XT 8 (16) N/A 3.9 4.7 32 MB 105 W 1 × CCD
1 × I/OD		 2 × 4 Jul 7, 2020 US $399
3800X Wraith Prism 4.5 Jul 7, 2019
3700X[lower-alpha 1] 3.6 4.4 065 W[lower-roman 3] US $329
Ryzen 5 3600XT 6 (12) N/A 3.8 4.5 95 W 2 × 3 Jul 7, 2020 US $249
3600X Wraith Spire (non-LED) 4.4 Jul 7, 2019
3600[lower-alpha 1] Wraith Stealth 3.6 4.2 65 W US $199
3500X[35] 6 (6) 4.1 Oct 8, 2019 China
¥1099
3500 OEM 16 MB Nov 15, 2019 OEM (West)
Japan
¥16000[36]
Ryzen 3 3300X 4 (8) Wraith Stealth 3.8 4.3 1 × 4 Apr 21, 2020 US $119
3100 3.6 3.9 2 × 2 US $99
  1. Core Complexes (CCXs) × cores per CCX
  2. Ryzen 9 3900X and Ryzen 9 3950X may consume over 145 W under load.[34]
  3. Ryzen 7 3700X may consume over 90 W under load.[34]
  1. Model also available as PRO 3600, PRO 3700, PRO 3900, released on September 30, 2019 for OEMs.

Common features of Ryzen 3000 HEDT/workstation CPUs:

  • Socket: sTRX4 (Threadripper), sWRX8 (Threadripper PRO).
  • Threadripper CPUs support DDR4-3200 in quad-channel mode while Threadripper PRO CPUs support DDR4-3200 in octa-channel mode.
  • L1 cache: 64 KB (32 KB data + 32 KB instruction) per core.
  • L2 cache: 512 KB per core.
  • Threadripper CPUs support 64 PCIe 4.0 lanes while Threadripper PRO CPUs support 128 PCIe 4.0 lanes. 8 of the lanes are reserved as link to the chipset.
  • No integrated graphics.
  • Fabrication process: TSMC 7FF.
Branding and Model Cores
(threads)		 Clock rate (GHz) L3 cache
(total)		 TDP Chiplets Core
config[lower-roman 1]		 Release
date		 MSRP
Base Boost
Ryzen
Threadripper
PRO		 3995WX 64 (128) 2.7 4.2 256 MB 280 W
[lower-roman 2]		 8 × CCD
1 × I/OD		 16 × 4 Jul 14, 2020
3975WX 32 (64) 3.5 128 MB 4 × CCD
1 × I/OD		 8 × 4
3955WX 16 (32) 3.9 4.3 64 MB 2 × CCD
1 × I/OD		 4 × 4
3945WX 12 (24) 4.0 4 × 3
Ryzen
Threadripper		 3990X 64 (128) 2.9 256 MB 8 × CCD
1 × I/OD		 16 × 4 Feb 7, 2020 US $3990
3970X 32 (64) 3.7 4.5 128 MB 4 × CCD
1 × I/OD		 8 × 4 Nov 25, 2019 US $1999
3960X 24 (48) 3.8 8 × 3 US $1399
  1. Core Complexes (CCXs) × cores per CCX
  2. Ryzen Threadripper 3990X may consume over 490 W under load.[37]

4000 series (Renoir)

Based on the Ryzen 4000G series APUs but with the integrated graphics disabled. Common features of Ryzen 4000 desktop CPUs:

  • Socket: AM4.
  • All the CPUs support DDR4-3200 in dual-channel mode.
  • L1 cache: 64 KB (32 KB data + 32 KB instruction) per core.
  • L2 cache: 512 KB per core.
  • All the CPUs support 24 PCIe 3.0 lanes. 4 of the lanes are reserved as link to the chipset.
  • No integrated graphics.
  • Fabrication process: TSMC 7FF.
  • Bundled with AMD Wraith Stealth

The AMD 4700S desktop processor is part of a "desktop kit" that comes bundled with a motherboard and GDDR6 RAM. The CPU is soldered, and provides 4 PCIe 2.0 lanes.

Branding and model Cores
(threads)		 Clock rate (GHz) L3 cache
(total)		 TDP Core
config[lower-roman 1]		 Release
date		 MSRP
Base Boost
AMD 4800S[38][39] 8 (16) 4.0 8 MB 2 × 4 2022 bundled with desktop kit
4700S[40] 3.6 75 W 2021
Ryzen 5 4500 6 (12) 4.1 65 W 2 × 3 Apr 4, 2022 US $129
Ryzen 3 4100 4 (8) 3.8 4.0 4 MB 1 × 4 US $99
    1. Core Complexes (CCX) × cores per CCX

    Desktop APUs

    Common features of Ryzen 4000 desktop APUs:

    • Socket: AM4.
    • All the CPUs support DDR4-3200 in dual-channel mode.
    • L1 cache: 64 KB (32 KB data + 32 KB instruction) per core.
    • L2 cache: 512 KB per core.
    • All the CPUs support 24 PCIe 3.0 lanes. 4 of the lanes are reserved as link to the chipset.
    • Includes integrated GCN 5th generation GPU.
    • Fabrication process: TSMC 7FF.
    Branding and model CPU GPU TDP Release
    date    		 Release
    price
    Cores
    (threads)    		 Clock rate (GHz) L3 cache
    (total)    		 Core
    Config[lower-roman 1]    		 Model Clock
    (GHz)    		 Config[lower-roman 2] Processing
    power[lower-roman 3]
    (GFLOPS)
    Base Boost
    Ryzen 7 4700G[lower-alpha 1] 8 (16) 3.6 4.4 8 MB 2 × 4 Radeon
    Graphics[lower-alpha 2]    		 2.1 512:32:16
    8 CU    		 2150.4 65 W Jul 21, 2020 OEM
    4700GE[lower-alpha 1] 3.1 4.3 2.0 2048 35 W
    Ryzen 5 4600G[lower-alpha 1]
    		 6 (12) 3.7 4.2 2 × 3 1.9 448:28:14
    7 CU    		 1702.4 65 W Jul 21, 2020
    (OEM) /
    Apr 4, 2022
    (retail)    		 OEM /
    US $154
    4600GE[lower-alpha 1] 3.3 35 W Jul 21, 2020 OEM
    Ryzen 3 4300G[lower-alpha 1] 4 (8) 3.8 4.0 4 MB 1 × 4 1.7 384:24:12
    6 CU    		 1305.6 65 W
    4300GE[lower-alpha 1] 3.5 35 W
    1. Core complexes (CCXs) × cores per CCX
    2. Unified shaders : Texture mapping units : Render output units and Compute units (CU)
    3. Single-precision performance is calculated from the base (or boost) core clock speed based on a FMA operation.
    1. Model also available as PRO version as 4350GE,[lower-alpha 3] 4350G,[lower-alpha 4] 4650GE,[lower-alpha 5] 4650G,[lower-alpha 6] 4750GE,[lower-alpha 7] 4750G,[lower-alpha 8] released on July 21, 2020 for OEM only.[lower-alpha 9]
    2. All of the iGPUs are branded as AMD Radeon Graphics.
    3. "AMD Ryzen 3 PRO 4350GE". AMD. Retrieved 18 October 2022.
    4. "AMD Ryzen 3 PRO 4350G". AMD. Retrieved 18 October 2022.
    5. "AMD Ryzen 3 PRO 4650GE". AMD. Retrieved 18 October 2022.
    6. "AMD Ryzen 3 PRO 4650G". AMD. Retrieved 18 October 2022.
    7. "AMD Ryzen 3 PRO 4750GE". AMD. Retrieved 18 October 2022.
    8. "AMD Ryzen 3 PRO 4750G". AMD. Retrieved 18 October 2022.
    9. "AMD Ryzen 4000 Series Desktop Processors with AMD Radeon Graphics Set to Deliver Breakthrough Performance for Commercial and Consumer Desktop PCs". AMD. 21 July 2020. Retrieved 18 October 2022.

    Renoir (4000 series)

    Common features of Ryzen 4000 notebook APUs:

    Branding and Model CPU AMD Radeon Graphics GPU TDP Release
    date
    Cores
    (threads)    		 Clock rate (GHz) L3 cache
    (total)    		 Core
    config[lower-roman 1]    		 Clock
    (GHz)    		 Config[lower-roman 2] Processing
    power
    (GFLOPS)[lower-roman 3]
    Base Boost
    Ryzen 9 4900H 8 (16) 3.3 4.4 8 MB 2 × 4 1.75 512:32:8
    8 CU    		 1792 35–54 W Mar 16, 2020
    4900HS 3.0 4.3 35 W
    Ryzen 7 4800H[41] 2.9 4.2 1.6 448:28:8
    7 CU    		 1433.6 35–54 W
    4800HS 35 W
    4980U[lower-alpha 1] 2.0 4.4 1.95 512:32:8
    8 CU    		 1996.8 10–25 W Apr 13, 2021
    4800U 1.8 4.2 1.75 1792 Mar 16, 2020
    4700U[lower-alpha 2] 8 (8) 2.0 4.1 1.6 448:28:8
    7 CU    		 1433.6
    Ryzen 5 4600H[42] 6 (12) 3.0 4.0 2 × 3 1.5 384:24:8
    6 CU    		 1152 35–54 W
    4600HS[43] 35 W
    4680U[lower-alpha 1] 2.1 448:28:8
    7 CU    		 1344 10–25 W Apr 13, 2021
    4600U[lower-alpha 2] 384:24:8
    6 CU    		 1152 Mar 16, 2020
    4500U 6 (6) 2.3
    Ryzen 3 4300U[lower-alpha 2] 4 (4) 2.7 3.7 4 MB 1 × 4 1.4 320:20:8
    5 CU    		 896
    1. Core Complexes (CCX) × cores per CCX
    2. Unified shaders : texture mapping units : render output units and compute units (CU)
    3. Single precision performance is calculated from the base (or boost) core clock speed based on a FMA operation.
    1. Only found on the Microsoft Surface Laptop 4.
    2. Model also available as PRO version as 4450U,[lower-alpha 3] 4650U,[lower-alpha 4] 4750U,[lower-alpha 5] released May 7, 2020.
    3. "AMD Ryzen 3 PRO 4450U". AMD.
    4. "AMD Ryzen 5 PRO 4650U". AMD.
    5. "AMD Ryzen 7 PRO 4750U". AMD.

    Lucienne (5000 series)

    Common features:

    Branding and Model CPU GPU TDP Release
    date
    Cores
    (threads)    		 Clock rate (GHz) L3 cache
    (total)    		 Core
    config[lower-roman 1]    		 Model Clock
    (GHz)    		 Config[lower-roman 2] Processing
    power[lower-roman 3]
    (GFLOPS)
    Base Boost
    Ryzen 7 5700U 8 (16) 1.8 4.3 8 MB
    4 MB per CCX    		 2 × 4 Radeon
    Graphics
    [lower-alpha 1]    		 1.9 512:32:8
    8 CU    		 1945.6 10–25 W Jan 12, 2021
    Ryzen 5 5500U[44] 6 (12) 2.1 4.0 2 × 3 1.8 448:28:8
    7 CU    		 1612.8
    Ryzen 3 5300U 4 (8) 2.6 3.8 4 MB 1 × 4 1.5 384:24:8
    6 CU    		 1152
    1. All of the iGPUs are branded as AMD Radeon Graphics.
    1. Core Complexes (CCX) × cores per CCX
    2. Unified shaders : texture mapping units : render output units and compute units (CU)
    3. Single precision performance is calculated from the base (or boost) core clock speed based on a FMA operation.

    Ultra-mobile APUs

    In 2022, AMD announced the Mendocino ultra-mobile APUs.[45]

    Common features:

    • Socket: FT6
    • All the CPUs support LPDDR5-5500 in dual-channel mode.
    • L1 cache: 64 KB (32 KB data + 32 KB instruction) per core.
    • L2 cache: 512 KB per core.
    • All the CPUs support 4 PCIe 3.0 lanes.
    • Includes integrated RDNA2 GPU.
    • Fabrication process: TSMC 6 nm FinFET.
    Branding and Model CPU GPU TDP Release
    date
    Cores
    (threads)    		 Clock rate (GHz) L3 cache
    (total)    		 Core
    config[lower-roman 1]    		 Model Clock
    (GHz)
    Base Boost
    Ryzen 5 7520U[lower-alpha 1] 4 (8) 2.8 4.3 4 MB 1 × 4 Radeon 610M
    2 CU    		 1.9 15 W Sep 20, 2022[46]
    Ryzen 3 7320U[lower-alpha 1] 2.4 4.1
    1. Core Complexes (CCX) × cores per CCX
    1. Model also available as Chromebook optimized version as 7520C[lower-alpha 2] and 7320C[lower-alpha 3] released on May 23, 2023
    2. "AMD Ryzen 5 7520C". AMD.
    3. "AMD Ryzen 3 7320C". AMD.

    Embedded APUs
    Model Release
    date    		 Fab CPU GPU Socket PCIe
    support    		 Memory
    support    		 TDP
    Cores
    (threads)    		 Clock rate (GHz) Cache Archi-
    tecture    		 Config[lower-roman 1] Clock
    (GHz)    		 Processing
    power[lower-roman 2]
    (GFLOPS)
    Base Boost L1 L2 L3
    V2516[47] November 10, 2020[48] TSMC
    7FF    		 6 (12) 2.1 3.95 32 KB inst.
    32 KB data
    per core    		 512 KB
    per core    		 8 MB GCN 5 384:24:8
    6 CU    		 1.5 1152 FP6 20
    (8+4+4+4)
    PCIe 3.0    		 DDR4-3200
    dual-channel
    LPDDR4X-4266
    quad-channel    		 10–25 W
    V2546[47] 3.0 3.95 35–54 W
    V2718[47] 8 (16) 1.7 4.15 448:28:8
    7 CU    		 1.6 1433.6 10–25 W
    V2748[47] 2.9 4.25 35–54 W
    1. Unified Shaders : Texture Mapping Units : Render Output Units and Compute Units (CU)
    2. Single-precision performance is calculated from the base (or boost) core clock speed based on a FMA operation.

    Server CPUs

    Common features of these CPUs:

    • Codenamed "Rome"
    • Zen 2 Microarchitecture
    • 7 nm TSMC Process
    • SP3 Socket
    • The number of PCIe lanes: 128
    • Memory support: eight-channel DDR4-3200
    Model Release
    date    		 Price
    (USD)    		 Fab Chiplets Cores
    (threads)    		 Core
    config[lower-roman 1]    		 Clock rate (GHz) Cache Socket
    &
    Scaling    		 TDP
    Base Boost L1 L2 L3
    EPYC 7232P August 7,
    2019    		 $450 TSMC
    7FF    		 2 × CCD
    1 × I/OD    		 8 (16) 4 × 2 3.1 3.2 32 KB inst.
    32 KB data
    (per core)    		 512 KB
    (per core)    		 32 MB
    (8 MB per CCX)    		 SP3
    1P    		 120 W
    EPYC 7302P $825 4 × CCD
    1 × I/OD    		 16 (32) 8 × 2 3 3.3 128 MB
    (16 MB per CCX)    		 155 W
    EPYC 7402P $1250 24 (48) 8 × 3 2.8 3.35 180 W
    EPYC 7502P $2300 32 (64) 8 × 4 2.5 3.35
    EPYC 7702P $4425 8 × CCD
    1 × I/OD    		 64 (128) 16 × 4 2 3.35 256 MB
    (16 MB per CCX)    		 200 W
    EPYC 7252 $475 2 × CCD
    1 × I/OD    		 8 (16) 4 × 2 3.1 3.2 64 MB
    (16 MB per CCX)    		 SP3
    (up to) 2P    		 120 W
    EPYC 7262 $575 4 × CCD
    1 × I/OD    		 8 × 1 3.2 3.4 128 MB
    (16 MB per CCX)    		 155 W
    EPYC 7272 $625 2 × CCD
    1 × I/OD    		 12 (24) 4 × 3 2.9 3.2 64 MB
    (16 MB per CCX)    		 120 W
    EPYC 7282 $650 16 (32) 4 × 4 2.8 3.2
    EPYC 7302 $978 4 × CCD
    1 × I/OD    		 8 × 2 3 3.3 128 MB
    (16 MB per CCX)    		 155 W
    EPYC 7352 $1350 24 (48) 8 × 3 2.3 3.2
    EPYC 7402 $1783 8 × 3 2.8 3.35 180 W
    EPYC 7452 $2025 32 (64) 8 × 4 2.35 3.35 155 W
    EPYC 7502 $2600 8 × 4 2.5 3.35 180 W
    EPYC 7532 $3350 8 × CCD
    1 × I/OD    		 16 × 2 2.4 3.3 256 MB
    (16 MB per CCX)    		 200 W
    EPYC 7542 $3400 4 × CCD
    1 × I/OD    		 8 × 4 2.9 3.4 128 MB
    (16 MB per CCX)    		 225 W
    EPYC 7552 $4025 6 × CCD
    1 × I/OD    		 48 (96) 12 × 4 2.2 3.3 192 MB
    (16 MB per CCX)    		 200 W
    EPYC 7642 $4775 8 × CCD
    1 × I/OD    		 16 × 3 2.3 3.3 256 MB
    (16 MB per CCX)    		 225 W
    EPYC 7662 $6150 64 (128) 16 × 4 2 3.3 225 W
    EPYC 7702 $6450 2 3.35 200 W
    EPYC 7742 $6950 2.25 3.4 225 W
    EPYC 7H12 September 18, 2019 2.6 3.3 280 W
    EPYC 7F32 April 14, 2020[49] $2100 4 × CCD
    1 × I/OD    		 8 (16) 8 × 1 3.7 3.9 128 MB
    (16 MB per CCX)    		 180 W
    EPYC 7F52 $3100 8 × CCD
    1 × I/OD    		 16 (32) 16 × 1 3.5 3.9 256 MB
    (16 MB per CCX)    		 240 W
    EPYC 7F72 $2450 6 × CCD
    1 × I/OD    		 24 (48) 12 × 2 3.2 3.7 192 MB
    (16 MB per CCX)    		 240 W
    1. Core Complexes (CCX) × cores per CCX

    Video game consoles and other embedded
    • AMD Ryzen 7 3700X
      AMD Ryzen 7 3700X
    • Zen 2 I/O Die
      Zen 2 I/O Die
    • Infrared die shot of the I/O Die
      Infrared die shot of the I/O Die
    • EPYC I/O Die
      EPYC I/O Die
    • Zen 2 Core Complex Die (CCD)
      Zen 2 Core Complex Die (CCD)
    • AMD EPYC 7702 server processor.
      AMD EPYC 7702 server processor.
    • A delidded AMD 7702 featuring 8 CCDs and 1 I/O die, with remains of the solder thermal interface material (TIM) on the chiplets.
      A delidded AMD 7702 featuring 8 CCDs and 1 I/O die, with remains of the solder thermal interface material (TIM) on the chiplets.

    See also
    Wikimedia Commons has media related to Zen 2 microarchitecture.

    References
    1. "AMD Unleashes Ultimate PC Gaming Platform with Worldwide Availability of AMD Radeon RX 5700 Series Graphics Cards and AMD Ryzen 3000 Series Desktop Processors". AMD (Press release). Santa Clara, California. 7 July 2019. Retrieved 7 November 2020.
    2. Larabel, Michael (16 May 2017). "AMD Talks Up Vega Frontier Edition, Epyc, Zen 2, ThreadRipper". Phoronix. Retrieved 16 May 2017.
    3. Cutress, Ian (20 June 2017). "AMD EPYC Launch Event Live Blog". AnandTech. Retrieved 21 June 2017.
    4. Boshor, Gavin (20 September 2022). "AMD Launches Mendocino APUs: Zen 2-based Ryzen and Athlon 7020 Series with RDNA 2 Graphics". AnandTech. Retrieved 26 September 2022.
    5. Cutress, Ian (9 January 2019). "AMD Ryzen third Gen 'Matisse' Coming Mid 2019: Eight Core Zen 2 with PCIe 4.0 on Desktop". AnandTech. Retrieved 15 January 2019.
    6. online, heise. "AMD Ryzen 3000: 12-Kernprozessoren für den Mainstream". c't Magazin.
    7. Leather, Antony (7 July 2019). "AMD Ryzen 9 3900X and Ryzen 7 3700X Review: Old Ryzen Owners Look Away Now". Forbes. Retrieved 13 April 2023.
    8. Ridley, Jacob (27 May 2019). "AMD Ryzen 3000 CPUs launching July 7 with up to 12 cores". PCGamesN. Retrieved 28 May 2019.
    9. "2nd Gen AMD EPYC Processors Set New Standard for the Modern Datacenter with Record-Breaking Performance and Significant TCO Savings". AMD. 7 August 2019. Retrieved 8 August 2019.
    10. Hachman, Mark (9 January 2019). "AMD's CEO Lisa Su confirms ray tracing GPU development, hints at more 3rd-gen Ryzen cores". PCWorld. Retrieved 15 January 2019.
    11. Curtress, Ian (26 May 2019). "AMD Ryzen 3000 Announced: Five CPUs, 12 Cores for $499, Up to 4.6 GHz, PCIe 4.0, Coming 7/7". AnandTech. Retrieved 3 July 2019.
    12. Thomas, Bill (10 June 2019). "AMD announces the Ryzen 9 3950X, a 16-core mainstream processor". TechRadar. Retrieved 3 July 2019.
    13. Alcorn, Paul (31 January 2018). "AMD Predicts Double-Digit Revenue Growth In 2018, Ramps Up GPU Production". Tom's Hardware. Retrieved 31 January 2018.
    14. Shilov, Anton (6 November 2018). "AMD Unveils 'Chiplet' Design Approach: 7nm Zen 2 Cores Meet 14 nm I/O Die". AnandTech. Retrieved 13 April 2023.
    15. Cutress, Ian (10 June 2019). "AMD Zen 2 Microarchitecture Analysis: Ryzen 3000 and EPYC Rome". AnandTech. Retrieved 13 April 2023.
    16. Walton, Steven (16 November 2020). "AMD Ryzen 5000 IPC Performance Tested". TechSpot. Retrieved 18 April 2021.
    17. Hollister, Sean (13 November 2021). "Steam Deck: Five big things we learned from Valve's developer summit". The Verge. Retrieved 13 April 2023.
    18. "Steam Deck :: Tech Specs".
    19. Warren, Tom (24 February 2020). "Microsoft reveals more Xbox Series X specs, confirms 12 teraflops GPU". The Verge. Retrieved 24 February 2020.
    20. Leadbetter, Richard (18 March 2020). "Inside PlayStation 5: the specs and the tech that deliver Sony's next-gen vision". Eurogamer. Retrieved 18 March 2020.
    21. Cutress, Ian (10 June 2019). "AMD Zen 2 Microarchitecture Analysis: Ryzen 3000 and EPYC Rome". AnandTech. p. 1. Retrieved 17 June 2019.
    22. De Gelas, Johan (7 August 2019). "AMD Rome Second Generation EPYC Review: 2x 64-core Benchmarked". AnandTech. Retrieved 29 September 2019.
    23. November 2019, Paul Alcorn 21 (21 November 2019). "AMD Ryzen 9 3900X and Ryzen 7 3700X Review: Zen 2 and 7nm Unleashed". Tom's Hardware.
    24. Cutress, Ian (10 June 2019). "AMD Zen 2 Microarchitecture Analysis: Ryzen 3000 and EPYC Rome". AnandTech. Retrieved 17 June 2019.
    25. Cutress, Ian (10 June 2019). "AMD Zen 2 Microarchitecture Analysis: Ryzen 3000 and EPYC Rome". AnandTech. Retrieved 17 June 2019.
    26. Schor, David (22 July 2018). "VLSI 2018: GlobalFoundries 12nm Leading-Performance, 12LP".
    27. Mujtaba, Hassan (24 December 2019). "AMD Ryzen Threadripper 3970X Is An Absolutely Efficient Monster CPU".
    28. "AMD Zen 2 CPUs Come With A Few New Instructions - At Least WBNOINVD, CLWB, RDPID - Phoronix". www.phoronix.com.
    29. "GNU Binutils Adds Bits For AMD Zen 2's RDPRU + MCOMMIT Instructions - Phoronix". www.phoronix.com.
    30. btarunr (12 June 2019). "AMD Zen 2 has Hardware Mitigation for Spectre V4". TechPowerUp. Retrieved 18 October 2019.
    31. Agner, Fog. "Surprising new feature in AMD Ryzen 3000". Agner's CPU blog.
    32. Cutress, Ian (10 June 2019). "AMD Zen 2 Microarchitecture Analysis: Ryzen 3000 and EPYC Rome". AnandTech. Retrieved 12 January 2023.
    33. Cutress, Ian (26 May 2019). "AMD Ryzen 3000 Announced: Five CPUs, 12 Cores for $499, Up to 4.6 GHz, PCIe 4.0, Coming 7/7". AnandTech. Retrieved 17 June 2019.
    34. Alcorn, Paul (14 November 2019). "Tom's Hardware Ryzen 9 3950X review". Tom's Hardware. Retrieved 12 May 2020.
    35. Cutress, Ian (8 October 2019). "AMD Brings Ryzen 9 3900 and Ryzen 5 3500X To Life". AnandTech.
    36. Syed, Areej (17 February 2020). "AMD Launches Ryzen 5 3500 in Japan with 6 Cores/6 Threads for 16K Yen". Hardware Times.
    37. Hill, Luke (7 February 2020). "Kitguru AMD Ryzen Threadripper 3990X CPU Review". KitGuru. Retrieved 12 May 2020.
    38. Leadbetter, Richard; Judd, Will (30 July 2023). "AMD 4800S Desktop Kit review: playing PC games on the Xbox Series X CPU". Eurogamer. Retrieved 20 September 2023.
    39. WhyCry (31 July 2023). "AMD 4800S Desktop Kit, a PC repurposed APU from Xbox Series X has been tested". VideoCardz. Retrieved 20 September 2023.
    40. Alcorn, Paul (10 October 2021). "AMD 4700S Review: Defective PlayStation 5 Chips Resurrected". Tom's Hardware. Retrieved 7 July 2023.
    41. "AMD Ryzen 7 4800H Specs". TechPowerUp. Retrieved 17 September 2021.
    42. "AMD Ryzen 5 4600H Specs". TechPowerUp. Retrieved 17 September 2021.
    43. "AMD Ryzen 5 4600HS". AMD.
    44. "AMD Ryzen 5 5500U Specs". TechPowerUp. Retrieved 17 September 2021.
    45. "AMD Details 7020 Series Ryzen and Athlon 'Mendocino' Mobile APUs". Tom's Hardware. 20 September 2022.
    46. "AMD Ryzen 7020 Series Processors for Mobile Bring High-End Performance and Long Battery Life to Everyday Users". 20 September 2022. Retrieved 21 September 2022.
    47. "Product Brief: AMD Ryzen Embedded V2000 Processor Family" (PDF). AMD.
    48. "AMD Unveils AMD Ryzen Embedded V2000 Processors with Enhanced Performance and Power Efficiency". AMD.
    49. "New 2nd Gen AMD EPYC™ Processors Redefine Performance for Database, Commercial HPC and Hyperconverged Workloads". AMD. 14 April 2020.
    50. "AMD 4700S 8-Core Processor Desktop Kit". AMD. Retrieved 26 September 2022.
    This article is issued from Wikipedia. The text is licensed under Creative Commons - Attribution - Sharealike. Additional terms may apply for the media files.
