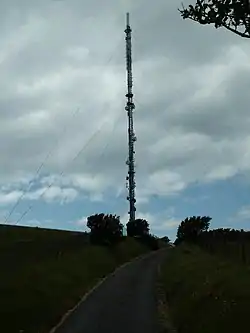

Blaenplwyf transmitting station

Newspaper articles[5][6] claimed that at launch, the television service would be 1 kW. The technical report from the BBC[7] disagrees, pointing out that the mean ERP was 0.8 kW at launch, and was uprated to twice that value on 8 August 1958.

This report also points out that the signal had its maximum ERP lobe to the north, and that this had been 1.6 kW at launch and 3.2 kW after the power increase. Also, that the coastal towns to the south-west had been treated to the weakest ERP (0.5 kW at launch, 1.0 kW later). Amongst the effects of this were to leave the town of Cardigan with no signal.

BBC2 625-line UHF colour television services came to Blaenplwyf in 1970 (early for Wales). VHF television continued as before. The service area for UHF however was designed to cover more of inland mid Wales than the VHF service had been.

A full (3-channel) 625-line UHF colour television service was in operation from Blaenplwyf as of 1973 with the introduction of the HTV Wales service.

The launch of Channel 4 (S4C in Wales) took the UHF capabilities of the site to its design maximum. Being in Wales, this transmitter radiated the S4C variant.

28 years of VHF television from this site came to an end in 1985 as the entire 405-line VHF TV system was switched off across the UK. Blaenplwyf continued with its four UHF channels.

Despite the fact that the UK's UHF TV system had only been engineered for four TV channels, a fifth was added in 1997. In common with the situation across much of the UK, Blaenplwyf was forced to transmit this extra service well out-of-group and at low power compared with the main four.

The UK's initial experimental digital television service was rolled out, using low power for the transmissions and interleaved with the analogue transmissions in an attempt to make the whole set receivable with the original aerial group.

Digital Switchover started at Blaenplwyf. The BBC2 analogue service on channel 27 was closed down after 40 years of service. Multiplex 1 from channel 28+ was also closed and the new BBC multiplex A commenced on channel 27 at its intended full power and using 64-QAM mode and 8k carriers from the start.

Digital switchover was completed, seeing the shutdown of all the remaining analogue TV services from this site. The new digital multiplexes took over the frequencies of the analogue services plus a few new ones.

Blaenplwyf started transmitting VHF FM radio only a year and a half after the then-novel service was initiated in the UK.[8] At launch, the service was from temporary transmitters using a temporary mast, but from 29 April 1957 the main transmitters came into service with antennas on the main mast. These transmitters were 60 kW each.[9]

In 1960 the BBC published a technical report[10] showing the measured service area of the FM radio services (plus those of Moel y Parc and Llanddona).

The names of the radio services changed in the late 1960s, but the number of services available remained the same, as did the ERPs.[11]

Radio 1 started to share the Radio 2 VHF allocations during the late 1970s. Radio Cymru had taken over the 93.1 MHz slot. The ERPs of all three services were still unchanged.[12]

The ERP had been uprated in the years since 1978. More services had been added.[13]

More services have been added since the late 1980s.[14][15][16] The latter of these references notes that the Classic FM and Radio Ceredigion services are radiated from a point only 80 m (262 ft) up the mast, and together with the low ERPs of those two services, the coverage should be expected to be limited.

From 4 January 2011, Real Radio was added to the set.[17] Real Radio's OFCOM application claims they intended to radiate 10 kW and 2.5 kW beams.[18] Real Radio was replaced with Heart in 2014, and Radio Ceredigion was replaced with Nation Radio in 2019.
