Arfon transmitting station

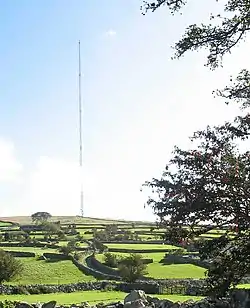

The Arfon transmitting station is a facility for FM, DAB digital radio and television transmission near the villages of Nebo and Nasareth in Gwynedd, northwestern Wales (grid reference SH476493). It includes a 308.5 m (1,012 ft) guyed mast with antennas attached at various heights. The mast is surmounted by a television transmitting antenna, which brings the total height of the structure to 317.4 m (1,041 ft), making it the tallest structure in Wales.[1] It is owned and operated by Arqiva.

Arfon
Arfon transmitting station is located in Gwynedd
Arfon
Arfon
Llanddona
Llanddona
Mast height317.4 m (1,041 ft)
Coordinates53°01′11″N 4°16′24″W
Grid referenceSH476493
Built1962
Relay ofLlanddona
BBC regionBBC Wales
ITV regionITV Cymru Wales

History

The station was built by the ITA in the early 1960s to provide a 405-line ITV Band III (VHF) TV service for north west Wales. Unlike the BBC, which served the area from Llanddona (on the island of Anglesey), Arfon gave better coverage to some areas. The tower was completed in 1962 and began broadcasting on 9 November of that year.

In October 1975 the site became a medium power UHF analogue colour television relay of Llanddona, at the time carrying BBC One, BBC Two and ITV. S4C was added in 1982.

405-line TV was finally discontinued in the UK in 1985, but it appears that Arfon's VHF transmitters were decommissioned a year early in 1984 and the transmitters themselves were reused for clinical radiotherapy.

More recently, Police and Ambulance communications have been added, in addition to mobile (cellular) telephone antennas. In 1993, Classic FM began using the site for FM coverage of north west Wales in preference to Llanddona (the BBC's regional FM site), partly due to a dispute over BBC charges for sharing fees of its transmitter masts and antennas, but more because Arfon, in conjunction with Great Orme's Head (near Llandudno) gave Classic FM better coverage than the BBC sites.

On 16 November 1998, local commercial radio station Champion 103 launched from studios in Bangor with its transmitter at Arfon.

The mast had its aircraft warning lights replaced in Summer 2006 to red lamps employing arrays of ultrabright LEDs.

On 18 July 2006, national digital radio network Digital One began broadcasting from the station.

Coverage area

The primary television service area includes most of Anglesey and central parts of the Llŷn Peninsula, however many viewers in south Dublin and north County Wicklow can also receive Arfon's broadcasts. The radio service area is slightly larger, reaching further down Cardigan Bay towards Tonfanau near Tywyn.

Channels listed by frequency

9 November 1962 – October 1975

Initially, Arfon was a relay of Preseli, receiving its 405-line VHF transmission off-air on channel 8 and rebroadcasting it on channel 10.

Frequency VHF kW Service
199.75 MHz 10 10 HTV Wales (Teledu Cymru until 1968)

October 1975 – 1 November 1982

With the coming of colour TV on 625 lines, Arfon acted as a relay of Llanddona, whilst continuing to relay Preseli's VHF transmission.

Frequency VHF UHF kW Service
199.75 MHz 10 — 10 HTV Wales
631.25 MHz — 41 3.6 HTV Wales
655.25 MHz — 44 3.6 BBC2 Wales
711.25 MHz — 51 3.6 BBC1 Wales

1 November 1982 – January 1984

1982 saw the rollout of the UK's 4th planned UHF television channel. As with all Welsh transmitters, Arfon was required to carry S4C instead of Channel 4 which is broadcast to the rest of the United Kingdom.

Frequency VHF UHF kW Service
199.75 MHz 10 — 10 HTV Wales
631.25 MHz — 41 3.6 HTV Wales
655.25 MHz — 44 3.6 BBC2 Wales
679.25 MHz — 47 3.6 S4C
711.25 MHz — 51 3.6 BBC1 Wales

January 1984 – 21 October 2009

After 22 years of VHF television from this site, the service was discontinued in January 1984. On UHF, Arfon was destined only ever to transmit the originally-planned four of the eventual five analogue terrestrial television channels.

Frequency UHF kW Service
631.25 MHz 41 3.6 ITV1 Wales (HTV Wales until 2002)
655.25 MHz 44 3.6 BBC Two Wales
679.25 MHz 47 3.6 S4C
711.25 MHz 51 3.6 BBC One Wales

21 October 2009 – 18 November 2009

There never was a pre-DSO digital TV service from Arfon.

DSO for the repeaters of Llanddona occurred between 21 October & 18 November 2009. In preparation for this, the transmitting antenna at the top of the Arfon mast was replaced in March 2008. This new antenna is slightly taller than the previous one, resulting in the mast's total height increasing to 317.4 metres (1,041 ft) from its previous height of 313.9 metres (1,030 ft).[1]

On 21 October, BBC2 Analogue was switched off, and ITV1 Wales took over its frequency for its final three weeks of service. BBC Mux A took over channel 41 that had just been vacated by ITV.

Frequency UHF kW Service System
634.166 MHz 41+ 2 BBC A DVB-T
655.25 MHz 44 3.6 ITV1 Wales PAL System I
679.25 MHz 47 3.6 S4C PAL System I
711.25 MHz 51 3.6 BBC One Wales PAL System I

18 November 2009 – present

The analogue television transmissions from Arfon ceased and were replaced by digital transmissions. Unusually for the UK, the digital transmissions from this site are considerably more powerful than is usual practice considering the ERP of the analogue services that they replace.

Frequency UHF kW Operator
634.166 MHz 41+ 2 BBC A
658.000 MHz 44 2 Digital 3&4
682.000 MHz 47 2 BBC B

Analogue radio (FM VHF)
Frequency kW[2] Service
100.7 MHz 3.75 (H)
15 (V)		 Classic FM
103.0 MHz 2.5 Capital Cymru
107.2 MHz 2.5 Heart North and Mid Wales

Digital radio (DAB)
Frequency Block kW[2] Operator
215.072 MHz 10D — MuxCo North West Wales†
222.064 MHz 11D 1.9 Digital One
225.648 MHz 12B 4 BBC National DAB

† MuxCo North west Wales is on this transmitter carrying both the Welsh language Capital Cymru and the English Capital North West & Wales. Also carries Smooth Radio, Nation Radio Wales and Dragon Radio.
