SM UC-56

SM UC-56 was a German Type UC II minelaying submarine or U-boat in the German Imperial Navy (German: Kaiserliche Marine) during World War I. The U-boat was ordered on 12 January 1916, laid down on 4 March 1916, and was launched on 26 August 1916. She was commissioned into the German Imperial Navy on 18 December 1916 as SM UC-56.[Note 1] In six patrols UC-56 was credited with sinking one ship by torpedo: the British hospital ship HMHS Glenart Castle. UC-56 suffered from mechanical breakdowns that prevented her from submerging. She put in at Santander, Spain, on 24 May 1918 and was interned there for the duration of the war.[1]

For other ships with the same name, see German submarine U-56.

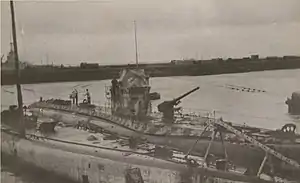

The damaged UC-56 at Santander, Spain, on 24 May 1918.
History
German Empire
NameUC-56
Ordered12 January 1916[1]
BuilderKaiserliche Werft, Danzig[2]
Yard number38[1]
Laid down4 March 1916[1]
Launched26 August 1916[1]
Commissioned18 December 1916[1]
FateInterned at Santander, Spain, 24 May 1918[1]
General characteristics [3]
Class and typeGerman Type UC II submarine
Displacement
  • 415 t (408 long tons), surfaced
  • 498 t (490 long tons), submerged
Length
Beam
  • 5.22 m (17 ft 2 in) o/a
  • 3.65 m (12 ft) pressure hull
Draught3.61 m (11 ft 10 in)
Propulsion
Speed
  • 11.6 knots (21.5 km/h; 13.3 mph), surfaced
  • 7.3 knots (13.5 km/h; 8.4 mph), submerged
Range
  • 8,660–9,450 nmi (16,040–17,500 km; 9,970–10,870 mi) at 7 knots (13 km/h; 8.1 mph) surfaced
  • 52 nmi (96 km; 60 mi) at 4 knots (7.4 km/h; 4.6 mph) submerged
Test depth50 meters (160 ft)
Complement26
Armament
Notes30-second diving time
Service record
Part of:
  • Baltic Flotilla
  • 20 August – 10 December 1917
  • Flandern I Flotilla
  • 10 December 1917 – 24 May 1918
Commanders:
  • Kptlt. Johannes Remy[4]
  • 18 December 1916 – 31 January 1917
  • Kptlt. Wilhelm Kiesewetter[5]
  • 1 February 1917 – 24 May 1918
Operations: 6 patrols
Victories: 1 auxiliary warship sunk
(6,824 GRT)

Design

A German Type UC II submarine, UC-56 had a displacement of 415 tonnes (408 long tons) when at the surface and 498 tonnes (490 long tons) while submerged. She had a length overall of 50.52 m (165 ft 9 in), a beam of 5.22 m (17 ft 2 in), and a draught of 3.61 m (11 ft 10 in). The submarine was powered by two six-cylinder four-stroke diesel engines each producing 290–300 metric horsepower (210–220 kW; 290–300 shp) (a total of 580–600 metric horsepower (430–440 kW; 570–590 shp)), two electric motors producing 620 metric horsepower (460 kW; 610 shp), and two propeller shafts. She had a dive time of 48 seconds and was capable of operating at a depth of 50 metres (160 ft).[3]

The submarine had a maximum surface speed of 11.6 knots (21.5 km/h; 13.3 mph) and a submerged speed of 7.3 knots (13.5 km/h; 8.4 mph). When submerged, she could operate for 52 nautical miles (96 km; 60 mi) at 4 knots (7.4 km/h; 4.6 mph); when surfaced, she could travel 8,660 to 9,450 nautical miles (16,040 to 17,500 km; 9,970 to 10,870 mi) at 7 knots (13 km/h; 8.1 mph). UC-56 was fitted with six 100 centimetres (39 in) mine tubes, eighteen UC 200 mines, three 50 centimetres (20 in) torpedo tubes (one on the stern and two on the bow), seven torpedoes, and one 8.8 cm (3.5 in) Uk L/30 deck gun. Her complement was twenty-six crew members.[3]

Fate

The U-boat was attacked with depth charges dropped by the USS Christabel on 21 May 1918. It was not capable of submerging again due to battle damage. On 24 May 1918, the U-boat arrived at Santander, Spain after a dangerous three-day voyage in a severely damaged condition. The crew of UC-56 were interned, the Germans reported to the Spanish authorities that their submarine had been seriously damaged by Christabel, and that they had had no choice but to take refuge in a neutral port.[6]

Summary of raiding history
Date Name Nationality Tonnage[Note 2] Fate[7]
26 February 1918 HMHS Glenart Castle  Royal Navy 6,824 Sunk
Surrendered U-boats U-108 and UC-56, in Brest docks in 1918, turned over to the French under armistice terms, UC-56 in the foreground.)
