Indian locomotive class SP

The Indian Railways SP class is a class of Indian steam locomotives used for passenger trains which was built around 1905. In the designation SP stands for Standard Passenger. The design originated from a BESA standard.

Indian Railways SP[1]
Type and origin
Power typeSteam
DesignerBritish Engineering Standards Association (BESA)
Builder
Build dateSP: 1904
Total producedSP: 10
Specifications
Configuration:
​
 • Whyte4-4-0
Gauge5 ft 6 in (1,676 mm)
Driver dia.6 ft 2 in (1.880 m)
Wheelbase
  • 6 ft 0 in (1.829 m) +
  • 7 ft 5 in (2.261 m) +
  • 9 ft 5 in (2.870 m)
Axle load16.25 long tons (16.51 t; 18.20 short tons)
Loco weight51.00 long tons (51.82 t; 57.12 short tons)
Tender weight39.50 long tons (40.13 t; 44.24 short tons)
Fuel typeCoal
Fuel capacity7.5 long tons (7.6 t; 8.4 short tons)
Water cap.3,000 imp gal (14,000 L; 3,600 US gal)
Firebox:
 • Firegrate area		25.3 sq ft (2.35 m2)
Boiler:
​
 • DiameterOutside: 4 ft 8+1⁄2 in (1,435 mm)
 • Tube plates11 ft 4+1⁄4 in (3.46 m)
 • Small tubes1+3⁄4 in (44 mm) × 236 off
Boiler pressure180 lbf/in2 (1.24 MPa)
Heating surface:
 • Tubes		1,229.5 sq ft (114.22 m2)
 • Firebox120 sq ft (11 m2)
CylindersTwo, inside
Cylinder size18+1⁄2 in × 26 in (470 mm × 660 mm)
Valve gearRotary Lentz valve gear
Valve typeSlide valve
Performance figures
Maximum speed
  • Freight: 18 mph (29 km/h)
  • Troop trains: 30 mph (48 km/h)
Career
Operators
LocaleEastern Railway zone and Northern Railway zone
DispositionScrapped

History

The standard SP series for passenger transport was presented in the first edition of the 1903 BESA standard. The 4-4-0 ("American") wheel arrangement with a leading bogie has already proven itself in India because it shows good smoothness even in poor track conditions. The SP series used the same boiler as the SG class standard goods locomotives, which had a diameter of 4 feet 8+1⁄4 inches (1,429 mm). In the 1910 BESA standard, a variant with a larger boiler was proposed, which had a diameter of 5 feet 1+1⁄4 inches (1,556 mm), as used in the PT class passenger tank locomotives.[2]

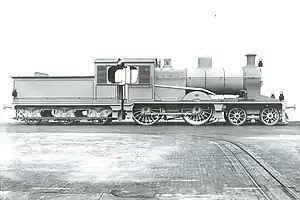

The locomotives were delivered to different railways, but only the Indian States Railways (ISR) operated railways used the type designation SP. Beyer-Peacock delivered a series of 10 pieces to the North Western Railway (NWR), whose route network lay in today's border area of India and Pakistan.[3]

Design

The locomotive was a two-cylinder saturated engine design with a Belpaire firebox. The grate was arranged between the coupled wheel sets. Between the frames were the two cylinders and the Walschaerts valve gear. A small cowcatcher was attached to the from buffer beam. The cab was completely enclosed, with the cab rear wall being formed by the three-axle tender.

Pakistan Railway 3157 (SPS series) in the exhibition of Museum of Science and Industry (MOSI) in Manchester

A later version was created equipped with a superheater and designated SPS (Standard Passenger, Superheated); SP locomotives retro-fitted with superheaters were usually reclassified as SPC (Standard Passenger, Converted) An SPS locomotive, most recently operated by the Pakistan Railways is preserved in the Museum of Science and Industry (MOSI) in Manchester. The exterior of the locomotive is practically identical to that of the SP series.
