GeoEye-1

GeoEye-1 is a high-resolution Earth observation satellite owned by DigitalGlobe, launched in September 2008. The satellite was acquired in the 2013 purchase of GeoEye.

GeoEye-1

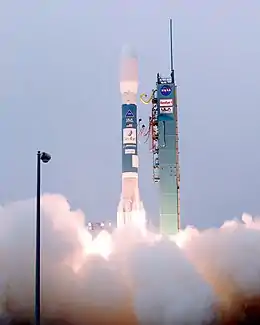

Launch of Delta II rocket carrying GeoEye-1
NamesOrbView-5
Mission typeEarth observation
OperatorDigitalGlobe
(formerly GeoEye)
COSPAR ID2008-042A
SATCAT no.33331
Mission durationPlanned: 7 years[1]
Elapsed: 15 years, 1 month, 19 days
Spacecraft properties
BusSA-200HP[2]
ManufacturerGeneral Dynamics
Launch mass1,955 kg (4,310 lb)[3]
Payload mass452 kg (996 lb)[3]
Dimensions4.35 × 2.7 m (14.3 × 8.9 ft) (arrays stowed)[3]
Power3,862 watts[3]
Start of mission
Launch date6 September 2008, 18:50:57 (2008-09-06UTC18:50:57) UTC[4]
RocketDelta II 7420-10, D-335[4]
Launch siteVandenberg SLC-2W[4]
ContractorBoeing / United Launch Alliance[5]
Orbital parameters
Reference systemGeocentric
RegimeSun-synchronous
Semi-major axis7,057 km (4,385 mi)
Eccentricity0.000879
Perigee altitude673 km (418 mi)
Apogee altitude685 km (426 mi)
Inclination98.12 degrees
Period98.34 minutes
RAAN347.09 degrees
Argument of perigee221.37 degrees
Epoch30 September 2018, 16:31:21 UTC[6]
Main telescope
Diameter1.1 m (3.6 ft)[7]
Focal length13.3 m (44 ft)[7]
ResolutionPanchromatic: 41 cm (16 in)
Multispectral: 165 cm (65 in)
Transponders
BandwidthX band: 150 or 740 Mbps[7]
DigitalGlobe fleet


History

On 1 December 2004, General Dynamics C4 Systems announced it had been awarded a contract worth approximately US$209 million to build the OrbView-5 satellite.[8] Its sensor is designed by the ITT Exelis.

The satellite, now known as GeoEye-1, was originally scheduled for launch in April 2008 but lost its 30-day launch slot to a U.S. government mission which had itself been delayed. It was rescheduled for launch 22 August 2008 from Vandenberg Air Force Base aboard a Delta II launch vehicle.[9] The launch was postponed to 4 September 2008, due to unavailability of the Big Crow telemetry-relay aircraft.[10][11] It was delayed again to 6 September because Hurricane Hanna interfered with its launch crews.

The launch took place successfully on 6 September 2008 at 18:50:57 UTC. The GeoEye-1 satellite separated successfully from its Delta II launch vehicle at 19:49 UTC, 58 minutes and 56 seconds after launch.[5]

Specifications and operation

GeoEye-1 provides 0.41 m (16 in) panchromatic and 1.65 m (5.4 ft) multispectral imagery at nadir in 15.2 km (9.4 mi) swaths. The spacecraft is in a Sun-synchronous orbit at an altitude of 681 km (423 mi) and an inclination of 98 degrees, with a 10:30 a.m. equator crossing time.[3][12][13] GeoEye-1 can image up to 60 degrees off nadir. It is operated out of Dulles, Virginia.[14]

At the time of its launch, GeoEye-1 was the world's highest resolution commercial Earth-imaging satellite.[15] GeoEye-1 was manufactured in Gilbert, Arizona, by General Dynamics and the first image was returned on 7 October of Kutztown University in Pennsylvania.[16]

Google, which had its logo on the side of the rocket, has exclusive online mapping use of its data. While GeoEye-1 is capable of imagery with details the size of 41 centimeters per pixel (16 in/px), that resolution was only available to the U.S. government. Google has access to details of 50 cm per pixel (20 in/px). Prior maximum commercial imagery was 60 cm (24 in).[17]

The National Geospatial-Intelligence Agency and Google paid a combined US$502 million for the satellite and upgrades to GeoEye's four ground stations.[18]

2009 anomaly

In December 2009 GeoEye announced it had suspended imagery collections by GeoEye-1 for a few days, citing an irregularity in the downlink antenna. "The irregularity appears to limit the range of movement of GeoEye-1's downlink antenna, which may in turn affect GeoEye-1's ability to image and downlink simultaneously," GeoEye said at a press conference.[19] However, the satellite continued with normal operations shortly thereafter, though with diminished simultaneous imaging-and-downlink capability for non-U.S. clients.[20]
