FS Class 290

The Ferrovie dello Stato Italiane (FS; Italian State Railways) Class 290 (Italian: Gruppo 290), formerly the Rete Adriatica Class 350 bis, is a 0-6-0 steam locomotive.

RA Class 350 bis
FS Class 290

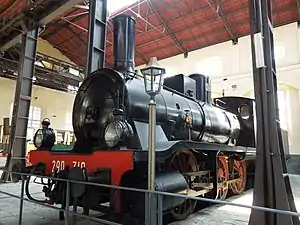

FS locomotive 290.319 as preserved
Type and origin
Power typeSteam
BuilderBorsig, Costruzioni Meccaniche di Saronno, Breda, Henschel & Son, Ansaldo, Miani & Silvestri, Maffei, MÁVAG, Maschinenfabrik Esslingen
Build date1899-1913
Total produced338
Specifications
Configuration:
​
 • UICC'n2
Gauge1,435 mm (4 ft 8+1⁄2 in)
Driver dia.1,510 mm (59.45 in)
Length15,800 mm (51 ft 10 in)
Axle load14.7 tonnes (14.5 long tons; 16.2 short tons)
Loco weight43.8 tonnes (43.1 long tons; 48.3 short tons)
Tender weight29.9 tonnes (29.4 long tons; 33.0 short tons)
Fuel typeCoal
Fuel capacity4,000 kg (8,800 lb)
Water cap.12,000 L (2,600 imp gal; 3,200 US gal)
Firebox:
 • Firegrate area		2.03 m2 (21.9 sq ft)
Boiler pressure12 kg/cm2 (1.18 MPa; 171 psi)
Heating surface120.88 m2 (1,301.1 sq ft)
CylindersTwo, outside
Cylinder size355 mm × 650 mm (13.98 in × 25.59 in)
Valve gearStephenson
Performance figures
Maximum speed60 km/h (37 mph)
Power output500 PS (368 kW; 493 hp)
Tractive effort8,740 kgf (85.7 kN; 19,300 lbf)

Design and construction

The Class 290 was a development of the earlier Class 270 locomotives, studied under the Rete Adriatica; it kept the wheelbase, but replaced the boiler with a slightly bigger one, with a minimally coned rear ring. Its construction was continued under the new FS management, which made it one of its twelve standard designs; it was the last and most successful 0-6-0 Italian locomotive.[1][2]

The class was built by several Italian and foreign manufacturers, between 1899 and 1913. The first 30 locomotives were fitted with a two-axle tender, with a coal capacity of 3,400 kg (7,500 lb) and a water capacity of 8,000 L (1,800 imp gal; 2,100 US gal); the subsequent ones were fitted with the three-axle tender that would see widespread service under the FS (especially behind the Class 625 and Class 640 locomotives).[3][2]

The first 112 locomotives were classified as Class RA 350 bis (with running numbers between 3631 and 3742); of these, 52 were taken over by the FS in July 1905 upon formation, while the other 60 were taken over by the new Strade Ferrate Meridionali (Southern Railways), a rump of the RA, until its incorporation with the FS in July 1906.[3][2]

Service

The class saw widespread service on the Italian network, with the first members of the class being sent to work as helpers on the steep lines around Fabriano and Sulmona.

Some locomotives were withdrawn relatively early, but as many as 60 were still active after World War II; however, their activity ceased by the end of the 1950s.[4][5]

Preservation

The last member of the class to remain active, the 290.319, survived into preservation; it is currently kept in the Pietrarsa railway museum.[4]
