Regenerative heat exchanger

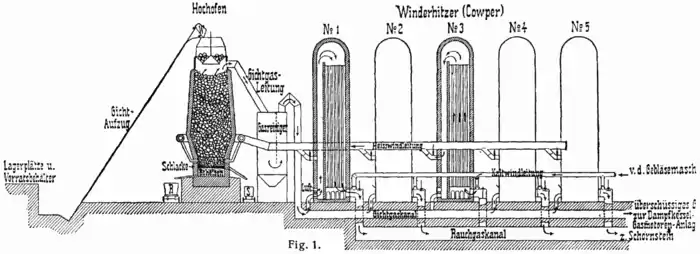

Blast furnace (left), and three Cowper stoves (right) used to preheat the air blown into the furnace

The first regenerator was invented by Rev. Robert Stirling in 1816, and is also found as a component of some examples of his Stirling engine. The simplest Stirling engines, including most models, use the walls of the cylinder and displacer as a rudimentary regenerator, which is simpler and cheaper to construct but far less efficient.

Later applications included the blast furnace process known as hot blast and the open hearth furnace also called Siemens regenerative furnace (which was used for making glass), where the hot exhaust gases from combustion are passed through firebrick regenerative chambers, which are thus heated. The flow is then reversed, so that the heated bricks preheat the fuel.

Edward Alfred Cowper applied the regeneration principle to blast furnaces, in the form of the "Cowper stove", patented in 1857.[3] This is almost invariably used with blast furnaces to this day.

Five Cowper's regenerative heat exchanger placed in series.

Regenerators exchange heat from one process fluid to an intermediate solid heat storage medium, then that medium exchanges heat with a second process fluid flow. The two flows are either separated in time, alternately circulating through the storage medium, or are separated in space and the heat storage medium is moved between the two flows.

In rotary regenerators, or thermal wheels, the heat storage "matrix" in the form of a wheel or drum, that rotates continuously through two counter-flowing streams of fluid. In this way, the two streams are mostly separated. Only one stream flows through each section of the matrix at a time; however, over the course of a rotation, both streams eventually flow through all sections of the matrix in succession. The heat storage medium can be a relatively fine-grained set of metal plates or wire mesh, made of some resistant alloy or coated to resist chemical attack by the process fluids, or made of ceramics in high temperature applications. A large amount of heat transfer area can be provided in each unit volume of the rotary regenerator, compared to a shell-and-tube heat exchanger - up to 1000 square feet of surface can be contained in each cubic foot of regenerator matrix, compared to about 30 square feet in each cubic foot of a shell-and-tube exchanger.[4]

Each portion of the matrix will be nearly isothermal, since the rotation is perpendicular to both the temperature gradient and flow direction, and not through them. The two fluid streams flow counter-current. The fluid temperatures vary across the flow area; however the local stream temperatures are not a function of time. The seals between the two streams are not perfect, so some cross contamination will occur. The allowable pressure level of a rotary regenerator is relatively low, compared to heat exchangers.

Patent drawings for a rotary regenerator, illustrating the drum-shaped matrix and the seals that prevent mixing of the streams.

Ljungström rotary regenerator

In a fixed matrix regenerator, a single fluid stream has cyclical, reversible flow; it is said to flow "counter-current". This regenerator may be part of a valveless system, such as a Stirling engine. In another configuration, the fluid is ducted through valves to different matrices in alternate operating periods resulting in outlet temperatures that vary with time. For example, a blast furnace may have several "stoves" or "checkers" full of refractory fire brick. The hot gas from the furnace is ducted through the brickwork for some interval, say one hour, until the brick reaches a high temperature. Valves then operate and switch the cold intake air through the brick, recovering the heat for use in the furnace. Practical installations will have multiple stoves and arrangements of valves to gradually transfer flow between a "hot" stove and an adjacent "cold" stove, so that the variations in the outlet air temperature are reduced.[5]

Another type of regenerator is called a micro scale regenerative heat exchanger. It has a multilayer grating structure in which each layer is offset from the adjacent layer by half a cell which has an opening along both axes perpendicular to the flow axis. Each layer is a composite structure of two sublayers, one of a high thermal conductivity material and another of a low thermal conductivity material. When a hot fluid flows through the cell, heat from the fluid is transferred to the cell wells, and stored there. When the fluid flow reverses direction, heat is transferred from the cell walls back to the fluid.

A third type of regenerator is called a "Rothemühle" regenerator. This type has a fixed matrix in a disk shape, and streams of fluid are ducted through rotating hoods. The Rothemühle regenerator is used as an air preheater in power generating plants. The thermal design of this regenerator is the same as of other types of regenerators.

The advantages of a regenerator over a recuperating (counter-flowing) heat exchanger is that it has a much higher surface area for a given volume, which provides a reduced exchanger volume for a given energy density, effectiveness and pressure drop. This makes a regenerator more economical in terms of materials and manufacturing, compared to an equivalent recuperator.

The design of inlet and outlet headers used to distribute hot and cold fluids in the matrix is much simpler in counter flow regenerators than recuperators. The reason behind this is that both streams flow in different sections for a rotary regenerator and one fluid enters and leaves one matrix at a time in a fixed-matrix regenerator. Furthermore, flow sectors for hot and cold fluids in rotary regenerators can be designed to optimize pressure drop in the fluids. The matrix surfaces of regenerators also have self-cleaning characteristics, reducing fluid-side fouling and corrosion. Finally properties such as small surface density and counter-flow arrangement of regenerators make it ideal for gas-gas heat exchange applications requiring effectiveness exceeding 85%. The heat transfer coefficient is much lower for gases than for liquids, thus the enormous surface area in a regenerator greatly increases heat transfer.

The major disadvantage of rotary and fixed-matrix regenerators is that there is always some mixing of the fluid streams, and they can not be completely separated. There is an unavoidable carryover of a small fraction of one fluid stream into the other. In the rotary regenerator, the carryover fluid is trapped inside the radial seal and in the matrix, and in a fixed-matrix regenerator, the carryover fluid is the fluid that remains in the void volume of the matrix. This small fraction will mix with the other stream in the following half-cycle. Therefore, rotary and fixed-matrix regenerators are only used when it is acceptable for the two fluid streams to be mixed. Mixed flow is common for gas-to-gas heat and/or energy transfer applications, and less common in liquid or phase-changing fluids since fluid contamination is often prohibited with liquid flows.

The constant heating and cooling that takes place in regenerative heat exchangers puts a lot of stress on the components of the heat exchanger, which can cause cracking or breakdown of materials.
