Choke ring antenna

A choke ring antenna is a particular form of omnidirectional antenna for use at high frequencies (VHF & UHF). It consists of a number of concentric conductive cylinders around a central antenna.

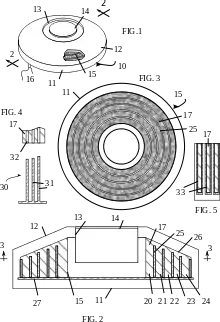

Patent diagram of a choke ring antenna[1]
Choke ring antenna at a DGPS Reference Station

Due to its intricate construction, it is often enclosed in a protective cover or radome when placed outside and exposed to the elements.

Benefits

Choke ring antennas are notable for their ability to reject multipath signals from a source. Since the path that a signal takes from a transmitter to receiver can be used to measure the distance between the two, this makes it highly suited for satellite navigation and radar applications. In a GNSS ground-based receiver, a choke ring antenna can provide millimeter precision measurements[2] for use in surveying and geological measurements.

The choke ring design was originally developed at the Jet Propulsion Laboratory.[3]
