Bach Super Transport

The Bach "Super Transport" was a design for a four-engined transport aircraft that was never built.[1]

Super Transport

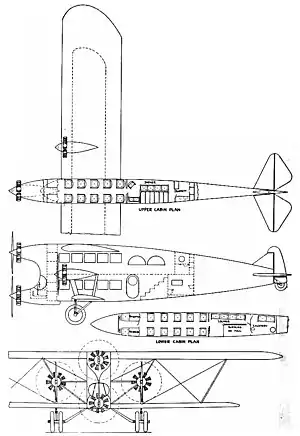

Bach Super Transport 3-view drawing from Aero Digest September 1928
Role Airliner
National origin United States
Manufacturer Bach Aircraft
Designer L. Morton Bach
Status Concept only
Developed from Bach Air Yacht

Design and development

The Bach Aircraft Company was founded by L. Morton Bach in 1927.[2] Following in the footsteps of Fokker with the Fokker F.VII Trimotor, and the metal Ford Trimotor, the Bach Air Yacht was developed as a commercial trimotor transport.[3] In 1928, Bach filed a patent for a four-engined design. The aircraft was similar to the trimotor as a metal-covered, strut-braced biplane, with conventional landing gear. It also featured semi-circular windows like the Stout 2-AT Pullman. The aircraft design featured an unusual modification of the trimotor arrangement with two nose-mounted engines stacked above each other with cockpit windows between them. The fuselage carried a double-decker seating arrangement. The Bach company was reorganized and dissolved during the Great Depression without any examples built.[1]

Specifications (Super Transport estimated)

Data from Patent 79061,[1] Aerofiles Ba to Bl[4]

General characteristics

  • Crew: 2
  • Capacity: 23 cabin crew and passengers
  • Wingspan: 85 ft (26 m)
  • Powerplant: 4 × Pratt & Whitney R-1340 Wasp 9-cylinder air-cooled radial piston engines, 410 hp (310 kW) each
  • Propellers: 2-bladed fixed pitch propellers

Performance

  • Maximum speed: 132 kn (152 mph, 245 km/h)
  • Cruise speed: 100 kn (120 mph, 190 km/h)
  • Range: 700 nmi (800 mi, 1,300 km)

See also

Related development

Aircraft of comparable role, configuration, and era

References
Wikimedia Commons has media related to Bach Super Transport.
  1. "U.S. Patent 79061 for Super Transport". Retrieved 16 October 2013.
  2. "L. Morton Bach". Retrieved 16 October 2013.
  3. "The Bach Air Yacht". Flight. 9 August 1928.
  4. Eckland, K.O. (3 November 2009). "Aerofiles Ba to Bl". Retrieved 15 November 2018.
