Verrières Viaduct

The Verrières Viaduct is a curved 720-metre concrete autoroute box girder bridge in the south of France, which at one point was briefly the highest bridge in France; it is almost 500 feet tall.

Verrières Viaduct

Viaduc de Verrières

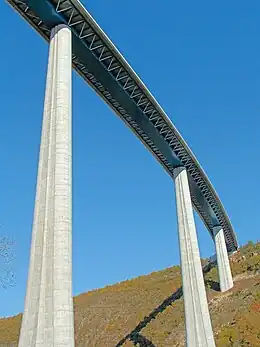

View in November 2003
Coordinates44.183°N 3.045°E / 44.183; 3.045
CarriesVehicles on the A75 autoroute
CrossesRiver Lumensonesque
LocaleVerrières, Aveyron, Occitanie, southern France
Characteristics
DesignBox girder bridge
MaterialSteel reinforced concrete composite
Total length720 m (2,360 ft)
Width23.5 m (77 ft)
Height141 m (463 ft)
Longest span144 m (472 ft)
No. of spans6
History
ArchitectAndré Mascarelli
Constructed bySpie Batignolles[1] (concrete road deck), Groupe Razel (concrete piers)
Construction startAugust 1998
Construction endJanuary 2002
Construction cost36,635,000 euros
Opened2002
Inaugurated2002
Location

History
Construction in 2002 (the highest P3 pier is being built, with P2 and P1)

Design

It would be the highest bridge in France. It has a concrete road deck, built on steel girders. The concrete piers are from 40 metres to 140 metres in height. Société d'études techniques et économiques (SETEC) carried out design work for the shape of the road deck.[2]

P3 pier would be the highest at 141.36m.

Construction

In August 1999, construction began of the steel deck structure on-site. In January 2002, the bridge deck was incrementally launched from one side. The bridge was too high to be built with a crane. 6,200 tonnes of steel were built, with 22,000 cubic metres of concrete for the five concrete piers. Groupe Razel built the concrete piers.[3]

The steelwork was built by Société d'études R. Foucault et Associés (SERF) of Cergy in Paris (Île-de-France).

Construction finished in January 2002.[4]

Structure

The bridge is one of the highest in France, and is almost 500 feet high. The road deck is curved.
