Plumbylene

Plumbylenes (or plumbylidenes) are divalent organolead(II) analogues of carbenes, with the general chemical formula, R2Pb, where R denotes a substituent. Plumbylenes possess 6 electrons in their valence shell, and are considered open shell species.

Plumbylenes, R2Pb

The first plumbylene reported was the dialkylplumbylene, [(Me3Si)2CH]2Pb, which was synthesized by Michael F. Lappert et al in 1973.[1]

Plumbylenes may be further classified into carbon-substituted plumbylenes, plumbylenes stabilized by a group 15 or 16 element, and monohalogenated plumbylenes (RPbX).[2]

Synthesis

Plumbylenes can generally be synthesized via the transmetallation of PbX2 (where X denotes halogen) with an organolithium (RLi) or Grignard reagent (RMgX).[2] The first reported plumbylene, [((CH3)3Si)2CH]2Pb, was synthesized by Michael F. Lappert et al by transmetallation of PbCl2 with [((CH3)3Si)2CH]Li.[1] The addition of equimolar RLi to PbX2 produces the monohalogenated plumbylene (RPbX); addition of 2 equivalents leads to disubstituted plumbylene (R2Pb).[3] Adding an organolithium or Grignard reagent with a different organic substituent (i.e. R’Li/R’MgX) from RPbX leads to the synthesis of heteroleptic plumbylenes (RR’Pb).[3] Dialkyl-,[1] diaryl-,[4] diamido-,[5] dithioplumbylenes,[3] and monohalogenated plumbyelenes[3] have been successfully synthesized this way.

General synthesis of plumbylenes via transmetallation

Transmetallation with [((CH3)3Si)2N]2Pb as the Pb(II) precursor has also been used to synthesize diarylplumbylenes,[6] disilylplumbylenes,[7] and saturated N-heterocyclic plumbylenes.[8]

Synthesis of various plumbylenes via transmetallation from [((CH3)3Si)2N]2Pb

Alternatively, plumbylenes may be synthesized from the reductive dehalogenation of tetravalent organolead compounds (R2PbX2).[6]

Synthesis of plumbylenes via reductive dehalogenation of tetravalent organolead compounds

Structure and bonding
Key valence orbitals of Pb in plumbylenes: the 6s lone pair and vacant 6p

The key aspects of bonding and reactivity in plumbylenes are dictated by the inert pair effect, whereby the combination of a widening s–p orbital energy gap as a trend down the group 14 elements and a strong relativistic contraction of the 6s orbital lead to a limited degree of sp hybridization and the 6s orbital being deep in energy and inert.[9] Consequently, plumbylenes exclusively have a singlet spin state due to the large singlet–triplet energy gap, and tend to exist in an equilibrium between monomeric and dimeric forms in solution.[9] This is in contrast to carbenes, which often have a triplet ground state and readily dimerize to form alkenes.

In dimethyllead, (CH3)2Pb, the Pb–C bond length is 2.267 Å and the C–Pb–C bond angle is 93.02°; the singlet–triplet gap is 36.99 kcal mol−1.[10]

Dimethyllead, (CH3)2Pb, and diphenyllead, (C6H5)2Pb

Diphenyllead, (C6H5)2Pb was computed with GAMESS at the B3PW91 level of theory using the basis sets 6-311+G(2df,p) for C and H and def2-svp for Pb with the ECP60MDF pseudopotential, in an adapted procedure (which uses the cc-pVTZ basis set for Pb instead).[11] The molecular orbitals (MOs) (visualized using Chimera[12]) and natural bond orbitals (NBOs) (visualized using multiwfn[13]) generated are produced below, and qualitatively identical to the literature.[11] As expected, the HOMO is 6s-dominated, and the LUMO is 6p-dominated. The NBOs are of the 6s lone pair and vacant 6p orbital respectively.

HOMO
LUMO
NBO 6s lone pair
NBO 6p vacant orbital
Molecular orbitals (MOs) and natural bond orbitals (NBOs) of diphenyllead

The Pb–C bond distance was found to be 2.303 Å and the C–Pb–C angle 105.7°. Notwithstanding the different levels of theory, the larger bond angle for (C6H5)2Pb compared to (CH3)2Pb can be rationalized by the greater repulsion between the sterically bulkier phenyl groups relative to methyl groups.

Atoms in molecules (AIM) topology analysis revealed critical points in (C6H5)2Pb, and is consistent with the literature.[11]

AIM molecular graph of diphenyllead. Green points indicate (3, +3) critical points; orange, (3, -1); and purple, (3, -3).

Plumbylenes occur as reactive intermediates in the formation of tetravalent plumbanes (R4Pb).[14] Although the inert pair effect suggests the divalent state should be thermodynamically more stable than the tetravalent state, in the absence of stabilizing substituents, plumbylenes are sensitive to heat and light,[15] and tend to undergo polymerization and disproportionation, forming elemental lead in the process.[14][15]

Plumbylenes can be stabilized as monomers by the use of sterically bulky ligands (kinetic stabilization) or heteroatom-containing substituents that can donate electron density into the vacant 6p orbital (thermodynamic stabilization).[2]

Dimerization
Equilibrium between plumbylenes (monomer) and diplumbenes (dimer) in solution

Plumbylenes are able to undergo dimerization in two ways: either through the formation of a Pb=Pb double bond to form a formal diplumbene, or through bridging halide interactions.[2] Unhalogenated plumbylenes tend to exist in an equilibrium between the monomeric and dimeric form in solution, and, due to the low dimerization energy, as either monomers or dimers in the solid state, depending on the steric bulk of substituents.[2][9][16][17] However, increasing the steric bulk of lead-bound substituents can prevent the close association of plumbylene molecules and allow the plumbylene to exist exclusively as monomers in solution[18] or even in the solid state.[3][17]

The driving force for dimerization in general arises from the Lewis amphoteric nature of plumbylenes, which possess a Lewis acidic vacant 6p orbital and a weakly Lewis basic 6s lone pair, which can act as electron acceptor and donor orbitals respectively.[7][11]

Valence bonding diagram showing donation of 6s lone pairs of Pb into vacant 6p orbital of adjacent Pb in diplumbene

These diplumbenes possess a trans-bent structure similar to that in lighter, non-carbon congeners (disilenes, digermylenes, distannylenes).[9] The observed Pb–Pb bond lengths in diplumbenes (2.90 – 3.53 Å) have been found to typically be longer than those in tetravalent diplumbanes R3PbPbR3 (2.84 – 2.97 Å).[17] This, together with the low computed dimerization energy (energy released from the formation of dimers from monomers) of 24 kJ mol−1 for Pb2H4,[19] indicates weak multiple bonding. This counterintuitive result is due to the pair of 6s-6p donor-acceptor interactions representing the Pb=Pb double bond in diplumbenes being less energetically favourable compared to the overlap of spn orbitals (with a higher degree of hybridization than in diplumbenes) in the Pb–Pb single bond in diplumbanes.[17]

In monohalogenated plumbylenes, the halogen atom on one plumbylene is able to donate a lone pair into the vacant 6p orbital of the lead atom on a separate plumbylene in a bridging mode. Monohalogenated plumbylenes have been found to generally exist as monomers in solution and dimers in the solid state, but, again, sufficiently bulky substituents on lead can sterically block this dimerization mode.[2]

Due to decreasing dimerization energy down Group 14, while monohalogenated stannylenes and plumbylenes dimerize via the halogen-bridging mode, monohalogenated silylenes and germylenes tend to dimerize via the abovementioned multiply-bonded mode instead.[2]

Equilibrium between monomers and halogen-bridged dimers in monohalogenated plumbylenes

In a recent study, an N-heterocyclic plumbylene was shown to undergo dimerization leading to C–H activation, existing in solution in an equilibrium between the monomer and a dimer resulting from cleavage of an aryl C–H bond and formation of Pb–C and N–H bonds.[20] DFT studies proposed that the reaction occurred via electrophilic substitution at the arene of one plumbylene by the lead atom of another, and involves concerted Pb–C and N–H bond formation instead of insertion of Pb into the C–H bond.[20]

Stabilizing intramolecular interactions with substituents bearing lone pairs

Plumbylenes may be stabilized by electron donation into the vacant orbital of the lead atom. The two common intramolecular modes are resonance from a lone pair on the atom directly attached to the lead or by coordination from a Lewis base elsewhere in the molecule.[21]

For example, Group 15 or 16 elements directly adjacent to Pb donate a lone pair in manner similar to their stabilizing effect on Fisher carbenes.[2][4][22][23] Common examples of more remote electron-donors include nitrogen atoms that can lead to a six-memberd ring by bonding to the lead.[21] Even a fluorine atom on a remote trifluoromethyl group has been seen forming a coordination to lead in [2,4,6-(CF3)3C6H2]2Pb.[24]

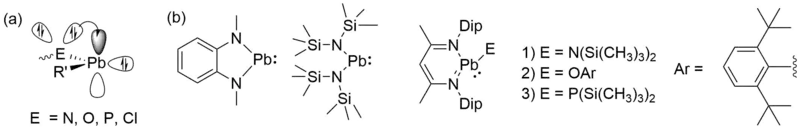

(a) Valence orbital diagram showing the donation of a lone pair on heteroatom E to the vacant 6p orbital of adjacent Pb. (b) Examples of heteroatom-stabilized plumbylenes

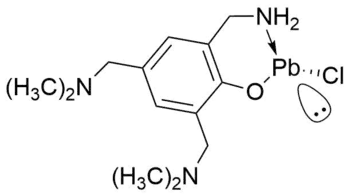

(From left) Example of plumbylene stabilized by lone pair donation from heteratom in side-arm of substituent; [2,4,6-(CF3)3C6H2]2Pb and its X-ray structure showing donation of lone pairs on F atoms in substituents to Pb atom (highlighted with red dashed lines)

Agostic interactions

Agostic interactions have also been shown to stabilize plumbylenes. DFT computations on the compounds [(R(CH3)2Si){(CH3)2P(BH3)}CH]2Pb (R = Me or Ph) found that agostic interactions between bonding B–H orbitals and the vacant 6p orbital lowered the energy of the molecule by ca. 38 kcal mol−1; this was supported by X-ray crystal structures showing the favourable positioning of said B–H bonds in proximity of Pb.[25]

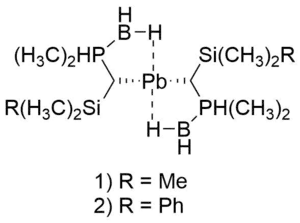

(From left) Examples of plumbylenes exhibiting agostic bonding between B–H bonds and vacant 6p orbital of Pb; front and top views of X-ray crystal structure of [((CH3)3Si){(CH3)3P(BH3)}CH]2Pb. Agostic interactions are highlighted with red dashed lines in the front view; the axis of interactions is indicated with a red dot in the top view.

Reactivity

As previously mentioned, unstabilized plumbylenes are prone to polymerization and disproportionation, and plumbylenes without bulky substituents tend to dimerize in one of two modes. Below, the reactions of stabilized plumbylenes (at least at the temperatures at which they were studied) are listed.

Lewis acid-base adduct formation

Plumbylenes are Lewis acidic via the vacant 6p orbital and tend to form adducts with Lewis bases, such as trimethylamine N-oxide (Me3NO),[26] 1-azidoadamantane (AdN3),[27] and mesityl azide (MesN3).[26] In contrast, the reaction between stannylenes and Me3NO produces the corresponding distannoxane (from oxidation of Sn(II) to Sn(IV)) instead of the Lewis adduct, which can be attributed to tin being a period above Pb, experiencing the inert pair effect to a lesser degree and hence having a higher susceptibility to oxidation.[28]

In the case of AdN3, the terminal N of the azidoadamantane binds to the plumbylene via a bridging mode between the Lewis acidic Pb and the Lewis basic P atom;[27] in the case of MesN3, the azide evolves N2 to form a nitrene, which then inserts into a C-H bond of an arene substituent and coordinates to Pb as a Lewis base.[26]

Reaction of plumbylenes with various Lewis bases

Insertion

Similar to carbenes[29] and other Group 14 congeners,[2] plumbylenes have been shown to undergo insertion reactions, specifically into C–X (X = Br, I) and Group 16 E–E (E = S, Se) bonds.[6]

Insertion reactions of R2Pb with R'–X (X = Br, I), R'–E–E–R' (E = S, Se) and S8

Insertions into lead-substituent bonds can also occur.27 In the examples below, insertion is accompanied by intramolecular rearrangement to place more electron-donating heteroatoms next to the electron-deficient lead.27

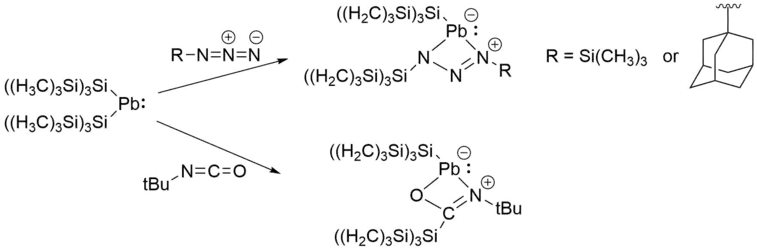

Insertion of an alkylazide and an isocyanate into [(Si(CH3)3)3Si]2Pb

Transmetallation

Plumbylenes are known to undergo nucleophilic substitution with organometallic reagents to form transmetallated products.28 In an unusual example, the use of TlPF6, bearing the weakly coordinating anion PF6−, led to the formation of crystals of an oligonuclear lead compound with a chain structure upon work-up, highlighting the interesting reactivity of plumbylenes.28

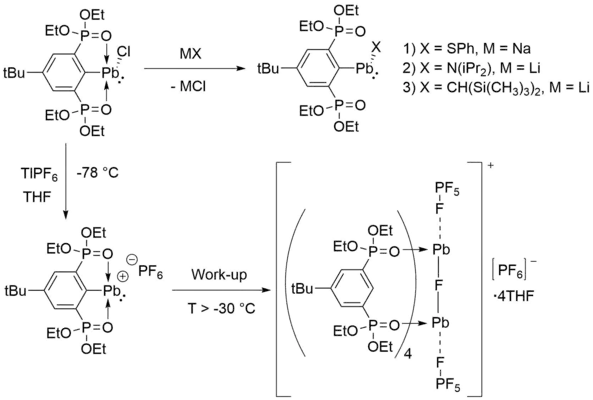

Transmetallation between a plumbylene and various organometallic reagents (top) and the formation of an unusual oligomeric chain compound (bottom)

In addition, plumbylenes can also undergo metathesis with group 13 E(CH3)3 (E = Al, Ga) compounds.[18]

Metathesis reaction between R2Pb and E(CH3)3 (E = Al, Ga). In this example, the plumbylene formed dimerizes into a diplumbene

Plumbylenes bearing different substituents can also undergo transmetallation and exchange substituents, with the driving force being the relief of steric strain and the low Pb-C bond dissociation energy.[30]

Transmetallation reaction between R2Pb and R’2Pb

Applications
Synergic σ-donor-σ-acceptor interactions of PbCl2 with Pt(PCy3)2

Plumbylenes can be used as concurrent σ-donor-σ-acceptor ligands to metal complexes, functioning as σ-donor via its filled 6s orbital and σ-acceptor via its empty 6p orbital.

Room temperature-stable plumbylenes have also been suggested as precursors in chemical vapour deposition (CVD) and atomic layer deposition (ALD) of lead-containing materials.[31] Dithioplumbylenes and dialkoxyplumbylenes may be useful as precursors for preparing the semiconductor material lead sulphide and piezoelectric PZT respectively.[32]
