Microserver

A data center 64 bit microserver is a server class computer which is based on a system on a chip (SoC). The goal is to integrate all of the server motherboard functions onto a single microchip, except DRAM, boot FLASH and power circuits.[1] Thus, the main chip contains more than only compute cores, caches, memory interfaces and PCI controllers. It typically also contains SATA, networking, serial port and boot FLASH interfaces on the same chip. This eliminates support chips (and therefore area, power and cost) at the board level. Multiple microservers can be put together in a small package to construct dense data center (example: DOME MicroDataCenter).

DOME P5020 Microserver
139mm x 55mm compute node

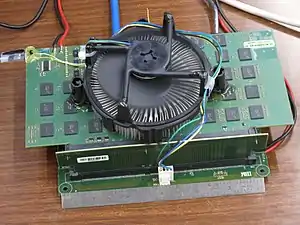

DOME T4240 Microserver prototype
T4240 revision 1 prototype board, running Fedora 20, 21 Jan 2015
DOME T4240 Microserver production version
T4240ZMS production version microserver, running Fedora 23, March 2017

History

The term "microserver" first appeared in the late 1990s and was popularized by a Palo Alto incubator; PicoStar [2] when incubating Cobalt Microservers. Microserver again appeared around 2010 and is commonly misunderstood to imply low performance.[3] Microservers first appeared in the embedded market, where due to cost and space these types of SoCs appeared before they did in general purpose computing. Indeed, recent research indicates that emerging scale-out services and popular datacenter workloads (e.g., as in CloudSuite[4]) require a certain degree of single-thread performance (with out-of-order execution cores) which may be lower than those in conventional desktop processors but much higher than those in the embedded systems.[5]

A modern microserver typically offers medium-high performance at high packaging densities, allowing very small compute node form factors. This can result in high energy efficiency (operations per Watt), typically better than that of highest single-thread performance processors.[6]

One of the early microservers is the 32-bit SheevaPlug. There are plenty of consumer grade 32-bit microservers available, for instance the Banana Pi as seen on Comparison of single-board computers. Early 2015, even a 64-bit consumer grade microserver is announced. Mid 2017 consumer-grade 64-bit microservers started appear, for example the Raspberry-Pi3.[7] Data-Center-grade microservers need to be 64-bit and run server class operating systems such as RHEL or SUSE.

Commercialization
  • Dell was among the first to build a commercially available microserver. In May 2009 Dell launched the Fortuna platform based on the VIA Nano processor. The system was designed for a specific European customer.[8]
  • SeaMicro followed shortly after Dell with one of the first generally available microservers. SeaMicro launched the SM10000 in June 2010. The SM1000 was based on the Intel Atom processor.[9] SeaMicro followed the SM1000 with the SM1000-64 using a 64 bit Atom processor,[10] and then switched to Intel's Sandy Bridge processor for the SM1000-XE [11] in 2011. They were acquired by AMD in 2012.
  • Calxeda, now out of business,[12] was one of the first companies to start building ARM based microservers, using 32-bit ARM cores. They went out of business before they could make the transition to 64-bit.
  • Hewlett-Packard has the commercial Moonshot [13] product line with 64-bit capability.
  • in 2016, the startup Kaleao introduced the KMAX product line based on ARM [14]

In 2015 microservers, sometimes also (confusingly) called 'scale-out servers' or even 'scale-in servers' are getting plenty of attention in the press.[15]

See also

References
  1. "Dual function heat-spreading and performance of the IBM / Astron DOME 64-bit μServer demonstrator", R. Luijten, A. Doering and S. Paredes, ICICDT, May 2014, Austin, TX
  2. "Trademark search 'microserver' here;" http://tmsearch.uspto.gov/
  3. "FAWN: A Fast Array of Wimpy Nodes". D. Andersen et al. Proc. 22nd ACM Symposium on Operating Systems Principles (SOSP 2009), Big Sky, MT. October 2009.
  4. "The CloudSuite". http://parsa.epfl.ch/cloudsuite.
  5. "Clearing the Clouds". M. Ferdman et al. Proc. 17th ACM International Conference on Architectural Support for Programming Languages and Operating Systems (ASPLOS), 2012.
  6. "Energy Efficient MicroServer based on a 12-core 1.8GHz 188K Coremark 28nm Bulk CMOS 64-bit SoC for Big-Data Applications with 159GB/s/liter Memory Bandwidth System Density.", R. Luijten, D. Pham, R. Clauberg, H. Nguyen, M. Cossale, M. Pandya, ISSCC 2015, Feb 2015, San Francisco
  7. "Buy a Raspberry Pi 3 Model B".
  8. "VIA Nano finds itself in a curious place: Dell 'Fortuna' servers - PC Perspective". 20 May 2009.
  9. "SeaMicro Announces SM10000 Server with 512 Atom CPUs and Low Power Consumption".
  10. "SeaMicro pushes 'Atom smasher' to 768 cores in 10U box". The Register.
  11. SeaMicro SM10000-XE homepage
  12. ARM server developer Calxeda shuts down
  13. HP Moonshot System homepage
  14. Kaleao KMAX product overview
  15. ARM Challenging Intel in the Server Market: An Overview
